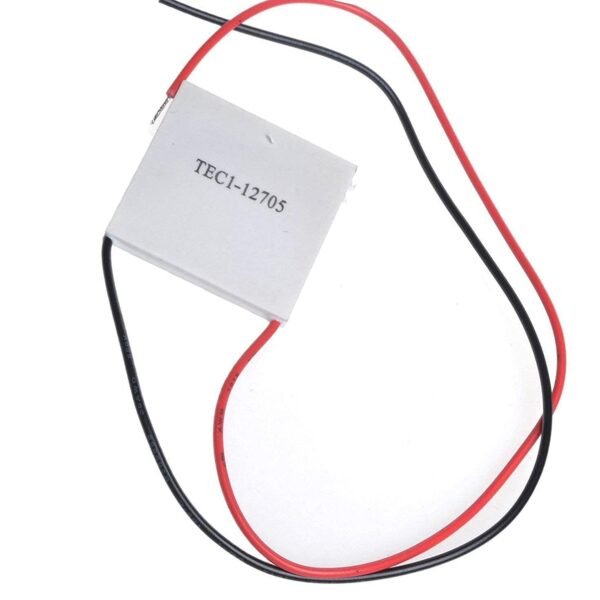

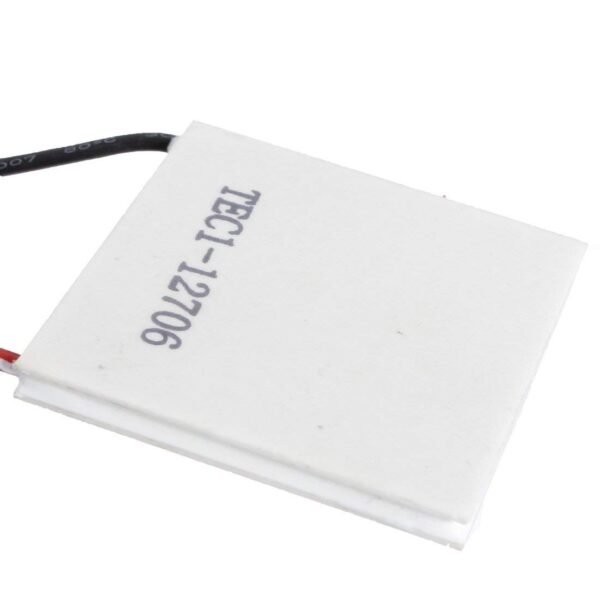

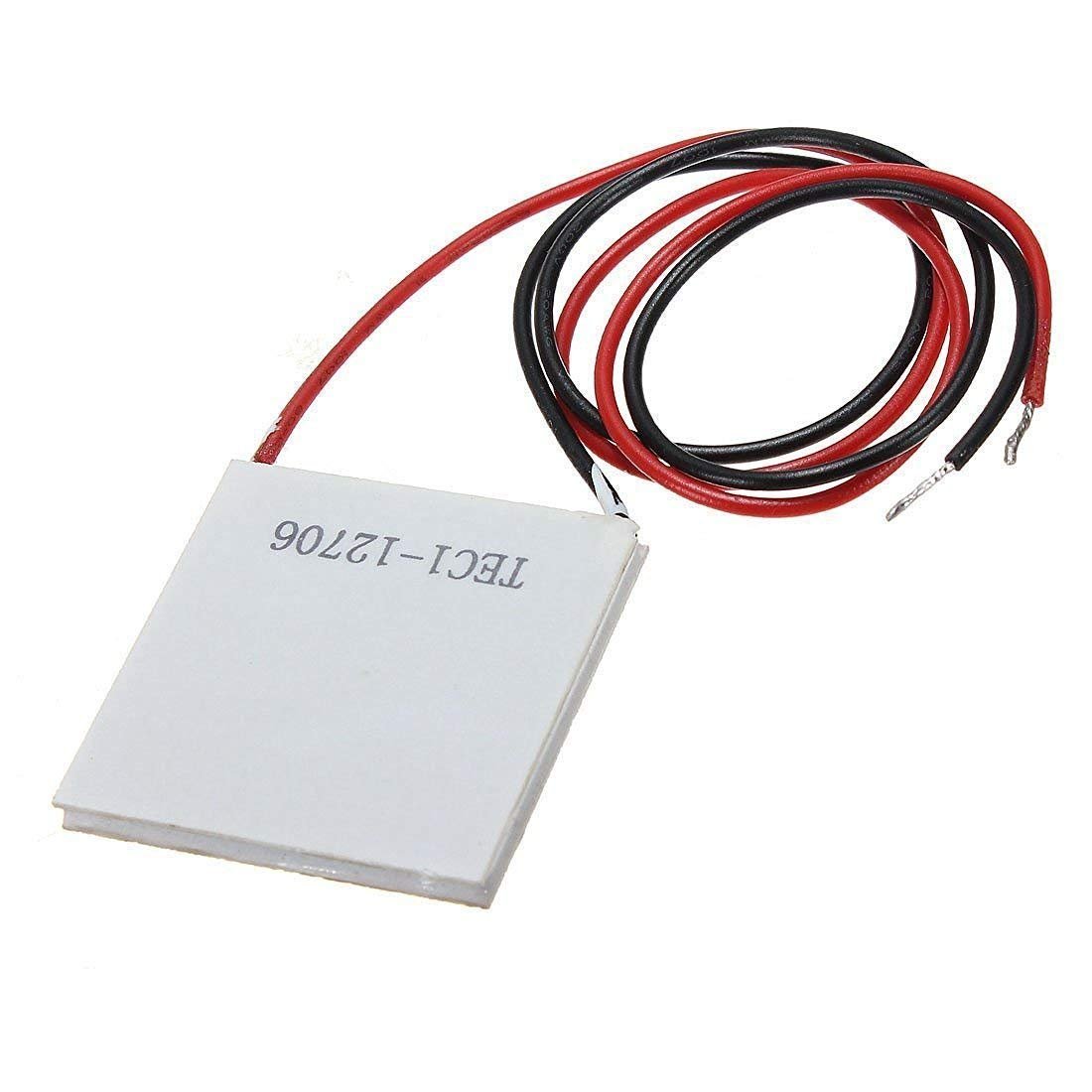

Generic 12706 Thermoelectric Peltier Cooler or Cooling Module 12V 92W Max

Price: ₹290.00
(as of February 13, 2026 – Details)

From the manufacturer

Tec 12706 Peltier Unit

A Peltier unit is an electric device that,

1. Convert temperature difference into voltage.

2. Convert voltage into temperature difference.

Working

Thermoelectric cooling uses the Peltier effect to create a heat flux between the junctions of two different types of materials. A Peltier cooler, heater, or thermoelectric heat pump is a solid-state active heat pump which transfers heat from one side of the device to the other, with consumption of electrical energy, depending on the direction of the current. Such an instrument is also called a Peltier device, Peltier heat pump, solid state refrigerator, or thermoelectric cooler (TEC). It can be used either for heating or for cooling, [1] although in practice the main application is cooling. It can also be used as a temperature controller that either heats or cools.

Performance Specification
no data
no data

Hot Side Temperature (0 °C)
25 0 °C 50 0 °C

Qmax
50 57

Delta Tmax (0 °C)
66 75

Imax (Amps)
6.4 6.4

Vmax (Volts)
14.4 16.4

Module Resistance (Ohms)
1.98 2.30

NOTE* The above reading are when the temperature defenses are mentioned to 250 °C and 500 °C respectively. no data

Operating Tips

– Max Operating Temperature: 138 °C

– Do not exceed Imax and Vmax when operating module

– Life Expectancy: 200,000 Hours

– Please consult HB for moisture protection options (seeling)

– Failure Rate Based on Long Time Testings: 0.2%

Thermoelectric peltier cooler or generator tec1-12706
Create a temperature differential on each side
One side gets hot and the other side gets cool
Designed for cooling and heating up to 90 degree celsius applications
weight: 20 gms
