Electrobot 1200W 20A DC Boost Converter Step-up Power Supply Module Input 10~60V Output 12~83V Power Supply Module

Price: ₹1199.00
(as of September 26, 2026 – Details)

• Product Parameter:
• Module properties: non-isolated step-up module (Boost Converter);
• Input voltage: DC 10V~60V;
• Maximum current: 20A;
• Quiescent current: 15 mA (12V liter 20V, the output voltage, the higher the current will increase too quiet);
• Output voltage: 12~83V continuously adjustable;
• Constant range: 0.5~18A(±0.3A）;
• Output current: MAX 18A over 10A, please strengthen the cooling;
• Temperature: -40~ + 85℃(ambient temperature is too high, please enhance heat dissipation);
• Operating frequency: 150KHz;
• Conversion efficiency: 92% ~ 97%;
• Low battery protection: yes;
• Input reverse polarity protection: yes;
• Enter the anti-reverse protection: yes;
• Short circuit protection: yes;
• Installation: 4x3mm screw holes.

• Applications:
• 1. DIY a power supply, 12V can input and output can 12-80V adjustable.
• 2. The power supply for your electronic device, according to your system can set the output.
• 3. As the car power supply for your laptop, PDA or a variety of digital products supply.
• 4. Solar panel regulator.
• 5. To the battery, rechargeable lithium batteries.

• Packaging Including:
• 1x 1200W 20A DC Boost Converter Step-up Power Supply Module.

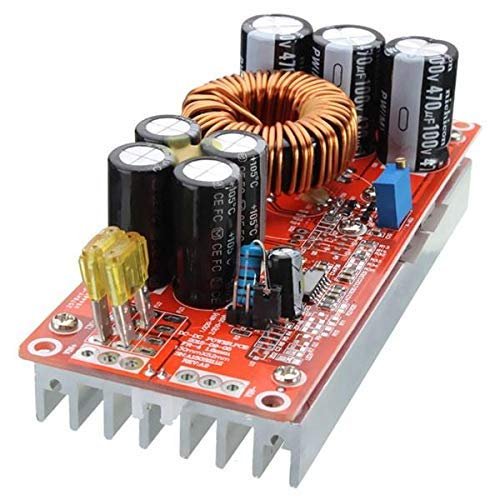

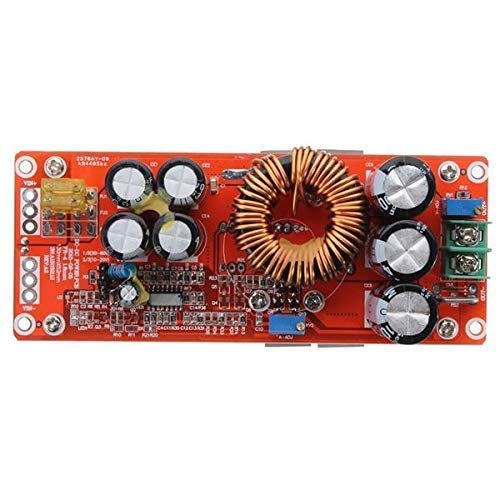

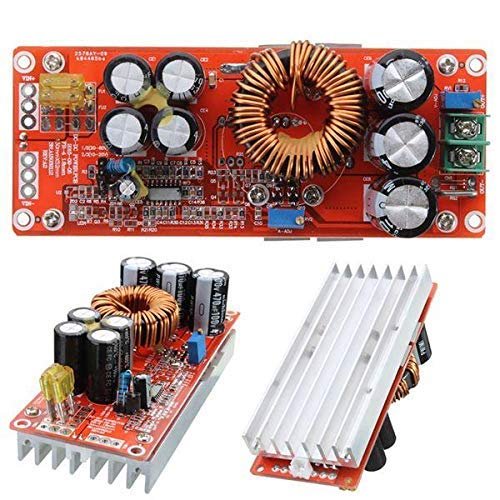

1200W 20A DC Boost Converter Step-up Power Supply Module is a non-isolated step-up module (Boost Converter).
100V/210A low resistance power MOS, high power and high current input, suitable for high power LED motors.
Have input MOS meter protection, don’t worry about input after burn out the power supply.
Power supply with double iron silicon aluminum-4 1.2mm pure copper wire and rao.
When used in battery input low battery protection avoid battery discharge damage power supply module and a battery.
